雙燃料燃燒器同時提供使用燃氣或燃油的可能性。燃料的切換由燃燒器控制部分自動完成，而無須對燃燒器進行人工改動。對于任何出于經濟或安全因素考慮需要能夠隨時切換到另一種燃料的用戶，此類燃燒器無疑是較佳的解決方案。

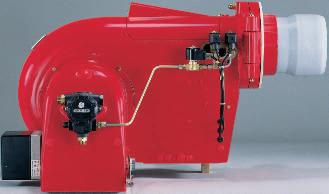

| 常用型號 | 威索Monarch系列燃油燃燒器 | ||||||
|---|---|---|---|---|---|---|---|
| 快速調節 | 慢速（平滑）調節 | ||||||
| 輕油燃燒器 | 重油燃燒器 | 輕油燃燒器 | 重油燃燒器 | ||||
| 兩段火 | 三段火 | 兩段火 | 平滑兩段式 | 比例調節式 | 平滑兩段式 | 比例調節式 | |
| 5#燃燒機 | L5Z | L5T | M5Z | RL5 | - | ||
| 7#燃燒機 | L7Z | L7T | MS7Z | RL7 | RMS7 | ||
| 8#燃燒機 | L8Z | L8T | MS8Z | RL8 | RMS8 | ||
| 8/2#燃燒機 | L8Z/2 | L8T/2 | - | RL8/2 | RMS8/2 | ||
| 9#燃燒機 | L9Z | L9T | MS9Z | RL9 | RMS9 | ||
| 10#燃燒機 | - | L10T | - | RL10 | RMS10 | ||
| 11#燃燒機 | - | - | - | RL11 | RMS11 | ||
|
|
||||||||||||||||||||||||
 |
 |
||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
 |
 |
||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
 |
 |
||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
 |
 |
||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
 |
 |
||||||||||||||||||||||||
| 型號 | 版本號 | 帶智能開關的定貨號 | 不帶智能開關的定貨號 | 測試號 | 程控器 | 油泵 | 風葉輪 | 伺服馬達 | 馬達 | 油管 | 重量 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 型號 | 額定電壓 | 功率 | 額定電流 | 通徑 | 長度 | 油路接口 | 油泵接口 | ||||||||||
| mm | 50Hz/2800rpm | V | kW | A | DN | mm | kg | ||||||||||
| L5Z | D | 61156401 | 61156402 | 5G553/2000 | LAL2... | J6 | Ø248x100 | 1055/23 | D90/90-2 | 3~230/400 | 1.5 | 6.0-3.5 | 13 | 1000 | G1/2” | G1/2” | 53 |
| L7Z | D | 61176401 | 61176402 | 5G581/2000 | LAL2... | J6 | Ø268x100 | 1055/23 | D112/110-2/1 | 3~230/400 | 3.0 | 10.5/6.0 | 13 | 1000 | G1/2” | G1/2” | 73 |
| L8Z | D | 61186401 | 61186402 | 5G595/2001 | LAL2... | J6/J7 | Ø268x100 | 1055/23 | D112/140-2/1 | 3~400 | 4.8 | 9.5 | 13 | 1000 | G1/2” | G1/2” | 78 |
| L8Z/2 | D | 61186601 | 61186602 | 5G595/2001 | LAL2... | J6/J7/TA2 | Ø268x100 | 1055/23 | D112/140-2/1 | 3~400 | 4.8 | 9.5 | 13 | 1000 | G1/2” | G1/2” | 81 |
| L9Z | D | 61196401 | 61196402 | 5G601/2001 | LAL2... | J6/J7/TA2 | Ø330x100 | 1055/23 | D132/120-2a | 3~400 | 6.5 | 13.5 | 13 | 1000 | G1/2” | G1/2” | 125 |
| L5T | D | 61159401 | 61159402 | 5G553/2000 | LAL2... | J6 | Ø248x100 | 1055/80 | D90/90-2 | 3~230/400 | 1.5 | 6.0/3.5 | 13 | 1000 | G1/2” | G1/2” | 53 |
| L7T | D | 61179401 | 61179402 | 5G581/2000 | LAL2... | J6 | Ø268x100 | 1055/80 | D112/110-2/1 | 3~230/400 | 3.0 | 10.5/6.0 | 13 | 1000 | G1/2” | G1/2” | 73 |
| L8T | D | 61189401 | 61189402 | 5G595/2001 | LAL2... | J6/J7 | Ø268x100 | 1055/80 | D112/140-2/1 | 3~400 | 4.8 | 9.5 | 13 | 1000 | G1/2” | G1/2” | 78 |
| L8T/2 | D | 61189601 | 61189602 | 5G595/2001 | LAL2... | J6/J7/TA2 | Ø268x100 | 1055/80 | D112/140-2/1 | 3~400 | 4.8 | 9.5 | 13 | 1000 | G1/2” | G1/2” | 81 |
| L9T | D | 61199401 | 61199402 | 5G601/2001 | LAL2... | J6/J7/TA2 | Ø330x100 | 1055/80 | D132/120-2a | 3~400 | 6.5 | 13.5 | 13 | 1000 | G1/2” | G1/2” | 125 |
| L10T | D | – | 68109402 | 5G604/2001 | LAL2... | J7/TA2 | Ø345x100 | 1055/80 | D132/120-2 | 3~400 | 9 | 18.0 | 13/20 | 1000 | M30x1.5 | G1” | 137 |
| RL5 | ZMD | – | 61157403 | 5G579/2000 | LAL2... | J6 | Ø248x100 | SQM | D90/90-2 | 3~230/400 | 1.5 | 6.0/3.5 | 13 | 1000 | G1/2” | G1” | 60 |
| RL7 | ZMD | – | 61177403 | 5G583/2000 | LAL2... | TA2 | Ø268x100 | SQM | D112/110-2/1 | 3~230/400 | 3.0 | 10.5/6.0 | 20 | 1000 | M30x1.5 | G1” | 80 |
| RL8 | ZMD | – | 61187402 | 5G597/2001 | LAL2... | TA3 | Ø268x100 | SQM | D112/140-2/1 | 3~400 | 4.8 | 9.5 | 20 | 1000 | M30x1.5 | G1” | 85 |
| RL8/2 | ZMD | – | 61187602 | 5G597/2001 | LAL2... | TA3 | Ø268x100 | SQM | D112/140-2/1 | 3~400 | 4.8 | 9.5 | 20 | 1000 | M30x1.5 | G1” | 89 |
| RL9 | ZMD | – | 61197402 | 5G603/2001 | LAL2... | TA3 | Ø330x100 | SQM | DK132/120-2a | 3~400 | 6.5 | 13.5 | 20 | 1000 | M30x1.5 | G1” | 132 |
| RL10 | ZMD | – | 68107402 | 5G605/2001 | LAL2... | TA3 | Ø345x100 | SQM | D132/120-2 | 3~400 | 9 | 18.0 | 20 | 1000 | M30x1.5 | G1” | 137 |
| RL11 | ZMD | – | 68117402 | 5G606/2001 | LAL2... | TA4 | Ø345x100 | SQM | D132/150-2 | 3~400 | 12 | 23.0 | 25 | 1300 | M38x1.5 | G1” | 195 |
| 型號 | 版本號 | 帶智能開關的定貨號 | 不帶智能開關的定貨號 | 程控器 | 油泵 | 風葉輪 | 預熱器 | 伺服馬達 | 馬達 | 油管 | 重量 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 型號 | 電壓 | 功率 | 電流 | 通徑 | 長度（供/回） | 油路連接 | 油泵連接 | ||||||||||
| mm | kW | 50Hz/2800rpm | V | kW | A | DN | mm | kg | |||||||||
| M5Z | D | 61256403 | 61256404 | LAL2... | E4 | Ø248x100 | EV2B/4.5kW | 1055/23 | D90/90-2 | 3~230/400 | 1.5 | 6.0-3. | 12 | 1000/700 | G1/2” | G1/2” | 68 |
| MS7Z | D | 61276403 | 61276404 | LAL2... | E6 | Ø268x100 | EV2D/13.2kW | 1055/23 | D112/110-2/1 | 3~230/400 | 3.0 | 10.5/6.0A | 20 | 1300/1000 | M30x1.5 | G1” | 94 |
| MS8Z | D | 61286403 | 61286404 | LAL2... | E7 | Ø268x100 | EV2D/13.2kW | 1055/23 | D112/140-2/1 | 3~400 | 4.8 | 9.5 | 20 | 1300/1000 | M30x1.5 | G1” | 112 |
| MS8Z/2 | D | 61286603 | 61286604 | LAL2... | E7 | Ø268x100 | EV2D/13.2kW | 1055/23 | D112/140-2/1 | 3~400 | 4.8 | 9.5 | 20 | 1300/1000 | M30x1.5 | G1” | 115 |
| MS9Z | D | – | 61296404 | LAL2... | E7 | Ø330x100 | EV2D/13.2kW | 1055/23 | D132/120-2a | 3~400 | 6.5 | 13.5 | 20 | 1300/1000 | M30x1.5 | G1” | 144 |
| RMS7 | ZMD | – | 61277403 | LAL2... | TA2 | Ø268x100 | EV2D/13.2kW | SQM | D112/110-2/1 | 3~230/400 | 3.0 | 10.5/6.0 | 20 | 1300/1000 | M30x1.5 | G1” | 111 |
| RMS8 | ZMD | – | 61287404 | LAL2... | TA3 | Ø268x100 | EV2D/13.2kW | SQM | D112/140-2/1 | 3~400 | 4.8 | 9.5 | 20 | 1300/1000 | M30x1.5 | G1” | 120 |
| RMS8/2 | ZMD | – | 61287604 | LAL2... | TA3 | Ø268x100 | EV2D/13.2kW | SQM | D112/140-2/1 | 3~400 | 4.8 | 9.5 | 20 | 1300/1000 | M30x1.5 | G1” | 124 |
| RMS9 | ZMD | – | 61297404 | LAL2... | TA3 | Ø330x100 | EV2D/13.2kW | SQM | DK132/120-2a | 3~400 | 6.5 | 13.5 | 20 | 1300/1000 | M30x1.5 | G1” | 175 |
| RMS10 | ZMD | – | 68207404 | LAL2... | TA3 | Ø345x100 | EV2D/13.2kW | SQM | D132/120-2 | 3~400 | 9 | 18.0 | 20 | 1300/1000 | M30x1.5 | G1” | 180 |
| RMS11 | ZMD | – | 68217403 | LAL2... | TA4 | Ø345x100 | WEV3/22.4kW | SQM | D132/150-2 | 3~400 | 12 | 23.0 | 25 | 1500/1150 | M38x1.5 | G1” | 245 |
| 型號 | 5 | 7 | 8 | 8/2 | 9 | 10 | 11 |
| I1 | 100 | 100 | 100 | 102 | 112 | 112 | 117 |
| I2 | 686 | 766 | 766 | 767 | 945 | 945 | 950 |
| I3 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| l4 | M5/2a:130 | M6/1a:214 | M7/1a:224 | M9/1a:232 | M9/1a:223 | M10/2:273 | M11/1:371 |
| l4 | M5/1a:145 | M7/1a:224 | M8/1a:234 | U2/1:227 | – | – | – |
| l4 | – | – | – | G7/2a:256 | – | – | – |
| I5 | 200 | 224 | 224 | 224 | 300 | 300 | 300 |
| I6 | 47 | 28 | 28 | 28 | 15 | 15 | – |
| I7 | 34 | 57 | 57 | 80 | 92 | 68 | 195 |
| I8 | 239 | 285 | 285 | 287 | 310 | 310 | 315 |
| I10 | 239 | 255 | 255 | 255 | 390 | 390 | 390 |
| b1 | 644 | 763 | 784 | 784 | 884 | 884 | 911 |
| b2 | 297 | 369 | 388 | 388 | 439 | 439 | 462 |
| b3 | 270 | 310 | 310 | 310 | 440 | 440 | 440 |
| b5 | 394 | 414 | 414 | 414 | 436 | 436 | 436 |
| b6 | 200 | 231 | 231 | 231 | 230 | 230 | 230 |
| h1 | 494 | 556 | 556 | 590 | 672 | 672 | 707 |
| h2 | 373 | 415 | 415 | 415 | 482 | 482 | 482 |
| h3 | 220 | 245 | 245 | 245 | 260 | 260 | 260 |
| h4 | 363 | 366 | 366 | 366 | 482 | 482 | 482 |
| d1 | M5/2a:160 | M6/1a:200 | M7/1a:220 | M9/1a:240 | M9/1a:240 | M10/2:265 | M11/1:325 |
| d1 | M5/1a:180 | M7/1a:220 | M8/1a:240 | U2/1:220 | – | – | – |
| d1 | – | – | – | G7/2a:265 | – | – | – |
| d2 | M10 | M10 | M10 | M12 | M12 | M12 | M10 |
| d3 | 210 | 235 | 235 | 298 | 330 | 330 | 400 |
| d4 | 185 | 210 | 210 | 275 | 280 | 280 | 340 |
| d5 | 154 | 196 | 196 | 241 | 240 | 265 | 324 |
| d6 | 176 | 218 | 218 | 218 | 258 | 258 | 258 |
| d7 | 242 | 281 | 281 | 350 | 380 | 380 | 450 |
| r1 | 680 | 770 | 800 | 800 | 960 | 960 | 980 |
| r2 | 705 | 790 | 790 | 790 | 975 | 975 | 975 |
| r3 | 790 | 865 | 865 | 865 | 1090 | 1090 | – |
| r4 | 21 | 23 | 23 | 23 | 25 | 25 | 25 |
| I11 | – | EV2C:186 | EV2D:114 | EV2D:116 | EV2D:153 | EV2D:153 | WEV3:124 |
| I11 | – | EV2D:114 | – | WEV2.2:106 | WEV2.2:149 | WEV2.2:149 | – |
| I11 | – | – | – | – | WEV3:119 | WEV3:119 | – |
| I12 | – | EV2C:126 | EV2D:198 | EV2D:198 | EV2D:198 | EV2D:198 | WEV3:314 |
| I12 | – | EV2D:198 | – | WEV2.2:254 | WEV2.2:254 | WEV2.2:254 | – |
| I12 | – | – | – | – | WEV3:314 | WEV3:314 | – |
| b4 | – | EV2C:430 | EV2D:430 | EV2D:430 | EV2D:430 | EV2D:430 | WEV3:744 |
| b4 | – | EV2D:430 | – | WEV2.2:630 | WEV2.2:630 | WEV2.2:630 | – |
| b4 | – | – | – | – | WEV3:744 | WEV3:744 | – |
| b7 | – | EV2C:235 | EV2D:235 | EV2D:235 | EV2D:235 | EV2D:235 | WEV3:384 |
| b7 | – | EV2D:235 | – | WEV2.2:327 | WEV2.2:327 | WEV2.2:327 | – |
| b7 | – | – | – | – | WEV3:384 | WEV3:384 | – |
| h5 | – | EV2C:214 | EV2D:214 | EV2D:214 | EV2D:214 | EV2D:214 | WEV3:205 |
| h5 | – | EV2D:214 | – | WEV2.2:191 | WEV2.2:191 | WEV2.2:191 | – |
| h5 | – | – | – | – | WEV3:205 | WEV3:205 | – |
